Discipline 02 · Architecture & interiors
Architectural & Interior Design.
Functional, compliant and inspiring spaces — the envelope that drives industrial efficiency. Concept-to-GFC packages, Revit BIM coordination and photorealistic visualisation, developed around your production flow and taken through statutory sanction.
Scroll

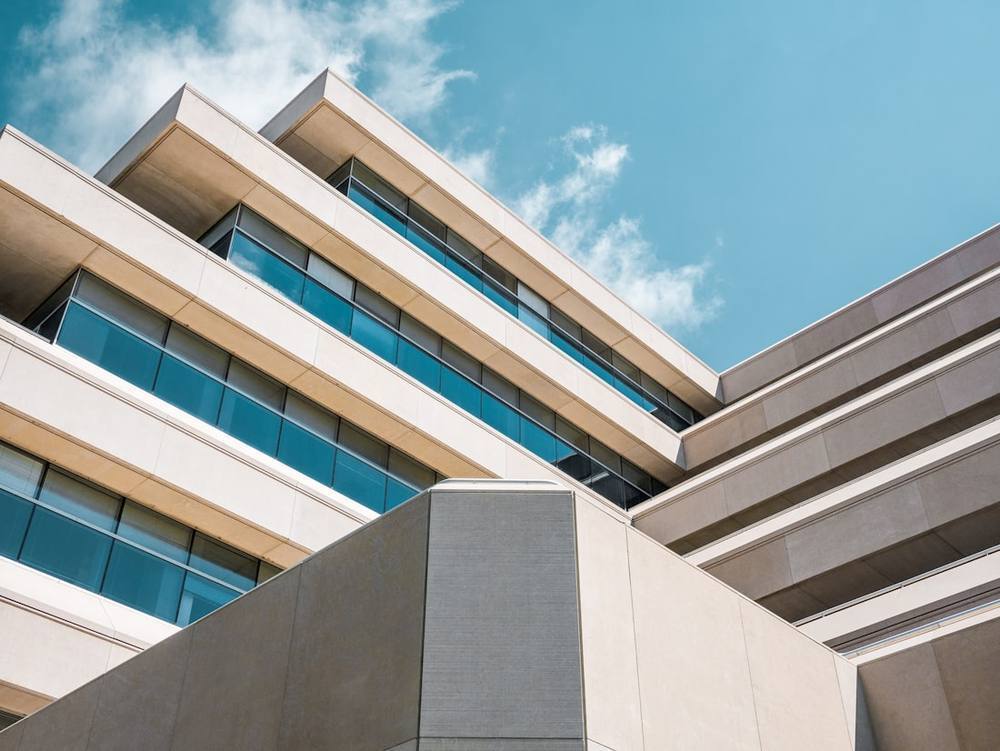

FIG.02 · Envelope & fit-out
BasisArea statement & test-fits
ModelRevit · LOD 350
SubmissionRAJUK & Pourashava
FIG.03 · Interior & workspace
01 Scope
Scope of work
What we deliver
Concept-to-good-for-construction packages built around your production flow, plus corporate interiors and photorealistic visualisation. Integrated BIM modelling in Revit detects spatial clashes across architecture, structure and MEP before ground-breaking — removing costly change orders and expediting statutory approvals.
- Concept to good-for-construction: complete architectural packages ready for on-site execution
- Industrial flow & layout: process planning that respects material flow, safety zones and expansion
- Corporate & commercial interiors: brand-consistent, durable, acoustic and ergonomic workplaces
- Photorealistic 3D visualisation: exterior elevations, interior walkthroughs, executive presentations
- BIM coordination in Revit: multi-trade clash detection across architectural, structural and MEP models
- Statutory approval sets prepared to RAJUK and Pourashava requirements
02 DeliverablesIncluded
Every package includes
Clear deliverables, fixed scope, milestone billing.
BIM & 3D Views
Revit-coordinated models with clash detection, plus photorealistic renders and walkthroughs for investors and boards.
Approval Packages
Submission sets mapped to RAJUK building by-laws, Pourashava regulations and NFPA 101 life safety.
Architectural scopeSend your layout for a first-pass test-fit →
03 ProcessHow we work
How an MTech project runs
From agreed design basis to senior peer vetting and signed submission — the same five-step rhythm on every engagement, so you always know what happens next.
Consultation
We walk the site and the process with you: production flow, headcount, growth plan and the constraints that shape the envelope.
Survey & Analysis
Topographic survey, floor-to-floor heights and statutory setbacks establish what the plot can actually carry.
Design & Review
Options with area statements and test-fits, then developed drawings reviewed with your team at every milestone.
Approval Support
We prepare and follow RAJUK, Pourashava, RSC, BEPZA and utility submission packages through to sanction.
Handover & Aftercare
Construction-stage clarifications, shop-drawing review, as-built sets and a maintenance roadmap for the finished asset.
04 Design basisStandards
Codes and standards we work to.
Every dimension, clearance and occupancy load traces back to a clause you can cite in front of the authority.
BNBC 2020 Part 3Building construction & architecture
RAJUK by-lawsDhaka building rules
Pourashava rulesMunicipal building regulations
NFPA 101Life safety & egress
BNBC 2020 Part 4Fire safety provisions
ASHRAE 55Thermal comfort
ASHRAE 62.1Ventilation & air quality
Revit / LOD 350BIM delivery standard
ISO 19650Information management
ASTM E413Acoustic rating
ISO 9001Quality management practice
Universal accessAccessibility provisions
06 Brief
Next step
Talk to the engineer who will own your project.
Tell us the site, the industry and the deadline. We will come back with a scoped proposal — typically within two working days.
- Site, flow & occupancy
- Area statement & test-fits
- Timeline & statutory approvals
